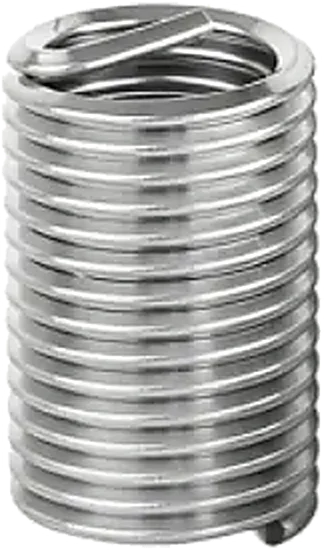

Thread Insert Manufacturer|Wire Thread Inserts / Self-Tapping Inserts — Source Factory
YF ZCJ thread insert source factory: wire thread inserts, self-tapping inserts, key-locking inserts, tangless inserts and aluminium / brass moulded inserts — 9 product families giving aluminium, die-cast and other low-strength substrates a high-strength, wear-resistant thread, covering both thread repair and structural reinforcement, with custom work to drawing and fast sampling.
Why Choose YF ZCJ Thread Inserts
Full-range coverage
Wire inserts, self-tapping inserts, key-locking inserts, tangless inserts and metal inserts in one place
Thread reinforcement
Markedly raises thread strength and wear life in aluminium and other low-strength materials
Lightweight inserts
Aluminium and brass inserts combine conductivity, heat transfer and thread in one part
Material choice
Stainless, alloy steel, aluminium and brass with optional finishes
Automotive quality system
Produced under IATF 16949, with dimensional inspection reports per lot
Fast sampling
Quick engineering-sample validation and non-standard parts to drawing
Thread Insert Product Series
Wire thread inserts
Insert seriesStandard wire inserts creating a high-strength internal thread in soft substrates
View products ↓Self-tapping inserts
302 / 308 typesSlotted and three-hole self-tapping, self-clearing chips, quick installation
View products ↓Key-locking / tangless inserts
Locking and repairKeys prevent rotation; tangless types leave no tang to remove
View products ↓Inner-outer and metal inserts
Aluminium / brassThin-wall inner-outer sleeves and moulded inserts for injection and die-casting
View products ↓Thread Insert Products (8 models)
High-Strength Internal & External Threaded Inserts
Precision-manufactured from high-grade carbon steel or stainless steel, our threaded inserts feature dual-layered threading (internal and external) designed to ...
Details
Type 302 Slotted Self-Tapping Threaded Inserts
Manufactured from premium Grade 302 stainless steel, our Type 302 self-tapping inserts feature a specialized slotted cutting design. ...
Details
Type 308 Self-Tapping Threaded Inserts (Three-Hole Design)
Manufactured from high-grade Grade 308 stainless steel, our Type 308 self-tapping inserts are engineered with integrated cutting edges (three-hole design). ...
Details
Aluminum Alloy Inserts
Precision Aluminum Alloy Inserts are crafted from lightweight, high-strength aluminum and treated with anodizing or passivation to ensure superior corrosion resistance. ...
Details
Brass Inserts
These precision brass inserts are crafted from high-quality brass, offering excellent electrical conductivity and corrosion resistance. ...
Details
Tangless Thread Inserts
The tangless thread insert features a bidirectional symmetrical hook-groove design, eliminating the need for tang break-off while ensuring non-directional, highly ...
Details
High-Precision Threaded Insert
High-Precision Threaded Inserts (Internal & External Threads) are manufactured from premium alloy steel or stainless steel, utilizing precision deep-hole machining and ...
Details
Tang-Drive Thread Insert for Light Alloy Substrates
Tang-Drive Thread Insert for Light Alloy Substrates Restores 100% original thread strength in Al 7075-T6 / AZ91D Mg—where 1 stripped hole = $2,800 scrap cost (per 2025 ...
DetailsThread Insert Selection Guide
1. By substrate strength
For aluminium, zinc alloy and castings prefer wire or self-tapping inserts; for moulded parts use brass or aluminium inserts.
2. By installation method
For automated volume installation choose tangless inserts, which need no tang removal; for manual repair use standard tanged types with the dedicated tool.
3. By locking need
Choose key-locking inserts where rotation must be prevented; standard types for general reinforcement; thin-wall parts take thin-wall inner-outer sleeves.
4. By material and environment
Stainless as standard; brass where electrical or thermal conductivity is needed; aluminium inserts for lightweighting and galvanic-corrosion-sensitive joints.
5. Thread repair
Stripped threads in aluminium housings can be repaired quickly with wire inserts, restoring the original thread size without replacing the part.
Typical Applications
3C metal housings
Thread reinforcement in aluminium and magnesium housings for repeated assembly
Die-cast inserts
Brass and aluminium inserts moulded in, thread formed in one step
Thread repair
Wire insert repair of stripped aluminium threads to original size
Motors and end caps
High-strength threaded joints in aluminium end caps and valve bodies
Moulds and fixtures
Lifting-hole and locating-thread reinforcement
Automotive lightweighting
Thread reinforcement in aluminium body and e-drive parts
Thread Insert FAQ
Q1Wire insert or self-tapping insert — how do I choose?
Wire inserts suit reinforcement and repair of a standard threaded hole and leave a standard internal thread. Self-tapping inserts cut their own thread in the substrate and screw in, which suits high-volume aluminium parts with higher efficiency.
Q2Do inserts extend thread life in aluminium?
Yes. The internal thread formed by a wire insert is far harder than the aluminium substrate, greatly extending repeated assembly life and improving load distribution in the thread.
Q3Are special tools needed?
Wire inserts need a dedicated installation tool (manual or electric); self-tapping inserts normally use an electric or pneumatic tool with a dedicated chuck; moulded inserts are pressed in or heat-set depending on design.
Q4Which materials and finishes are available?
Stainless, zinc-plated carbon steel, aluminium and brass as standard, with finishes to requirement and material certificates and inspection reports supplied.
Q5What is the advantage of tangless inserts?
No tang has to be broken off after installation, so there is no risk of a loose tang jamming the assembly — ideal for automated volume installation and deep or blind holes.
Q6Can you make non-standard inserts to drawing?
Yes — special thread sizes, profiles and combined inner-outer designs can be made to drawing with fast sample validation.
Need the full catalog or custom thread inserts to drawing?
Send specifications, drawings or application details for selection advice, test reports and a fast quote — direct to our sales lead.
