Direct assembly solutions: tri-lobular thread-forming screws roll their own internal thread into metal — no pre-tapping. PT Torx pan-flange plastic screws are developed for plastics with low drive torque and high pull-out strength, removing moulded inserts and cutting both cost and process steps.
Why Choose YF ZCJ Direct Assembly Fasteners

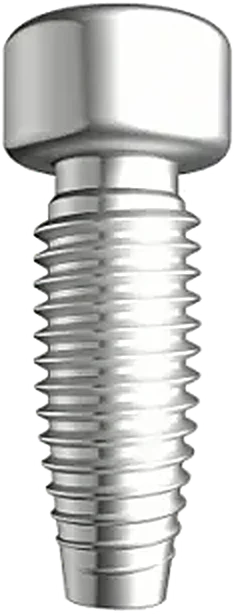

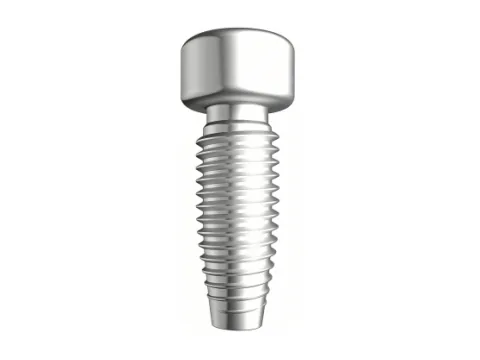

Tri-lobular forming
Three-lobe thread rolls the thread — no chips, high thread strength
Plastic-specific
The PT thread form drives with low stress so parts do not crack
Torx drive
High torque transfer, low cam-out
Flange head
Larger bearing face, no extra flat washer
Assembly efficiency
No tapping and no inserts — shorter line cycle time
Made to drawing
Thread, head, length and finish all customizable
Direct Assembly Selection Guide
1. By substrate
For thin metal parts (up to 3 mm) choose tri-lobular thread forming; for plastics choose PT thread-forming screws.
2. Pilot hole size
Thread-forming screws are sensitive to pilot hole size — request the recommended pilot table for your material and thickness.
3. Re-assembly cycles
Formed threads suit a limited number of re-assemblies; for frequent maintenance move to an insert solution.
4. Preventing plastic cracking
Choosing the right thread form and drive speed for plastics greatly reduces cracking risk.
5. Surface finish
Zinc-nickel, zinc plating and similar finishes selected to the environmental corrosion class.
Typical Applications
Appliance plastics
Housings and internal plastic structures
Automotive interiors
Interior clips and bracket assembly
Sheet-metal electricals
Controller metal enclosures joined by thread forming
Lighting assembly
Mixed plastic and metal lamp bodies
Power tools
Tool housings and internal assemblies
Electronic equipment
Direct assembly of structural parts
Direct Assembly FAQ
Q1How is a tri-lobular screw different from an ordinary self-tapping screw?
A tri-lobular screw forms the thread by plastic deformation — no chips, higher internal thread strength and better fatigue performance. A cutting self-tapping screw produces chips and a weaker thread.
Q2Will it crack plastic parts?
The PT thread form is designed for plastics: low drive torque and gentle compressive stress, which with the right pilot hole greatly reduces cracking risk.
Q3What pilot hole size should I use?
Pilot size depends on substrate, thickness and pitch. Request the recommended pilot table by part number, or send the substrate details and we will recommend one.
Q4Can it be re-assembled?
Formed threads allow a limited number of re-assemblies; for frequent servicing, form the thread first and then fit a wire thread insert or moulded insert.
Q5What are the MOQ and sampling options?
Samples can be supplied for validation; volume MOQ is evaluated by size.
Q6Which surface finishes are available?
Zinc plating, zinc-nickel, zinc-flake and similar, recommended to the corrosion class and cost target.
