Insert Screws Manufacturer|Licensed TORX® / TORX PLUS® Production
YF ZCJ has specialized in insert screws for over 20 years: 185 countersunk + 28 special-shape standard sizes in stock, grade 12.9 high-tensile material, build-to-print customization and rapid sampling for CNC insert clamping, tool disks, holders and precision tooling assembly.
Why Choose YF ZCJ Insert Screws
Licensed Drive Systems
TORX® / TORX PLUS® licensed recesses in volume production, machined to original-license precision
213+ Stock Sizes
185 countersunk + 28 special-shape standard sizes, fast delivery on common specs
Grade 12.9 High Strength
Grade 12.9 alloy steel / stainless options, stable torque, wear and fatigue resistant
Build-to-Print Specials
Inner-outer thread inserts, LH/RH double-end screws and more, rapid sampling from drawings
Automotive-Grade Quality
IATF 16949 quality system, dimensional inspection and torque test reports with every shipment
Rapid Sampling Response
Fast engineering-sample turnaround to keep tooling projects on the lowest total cost
Insert Screw Product Series

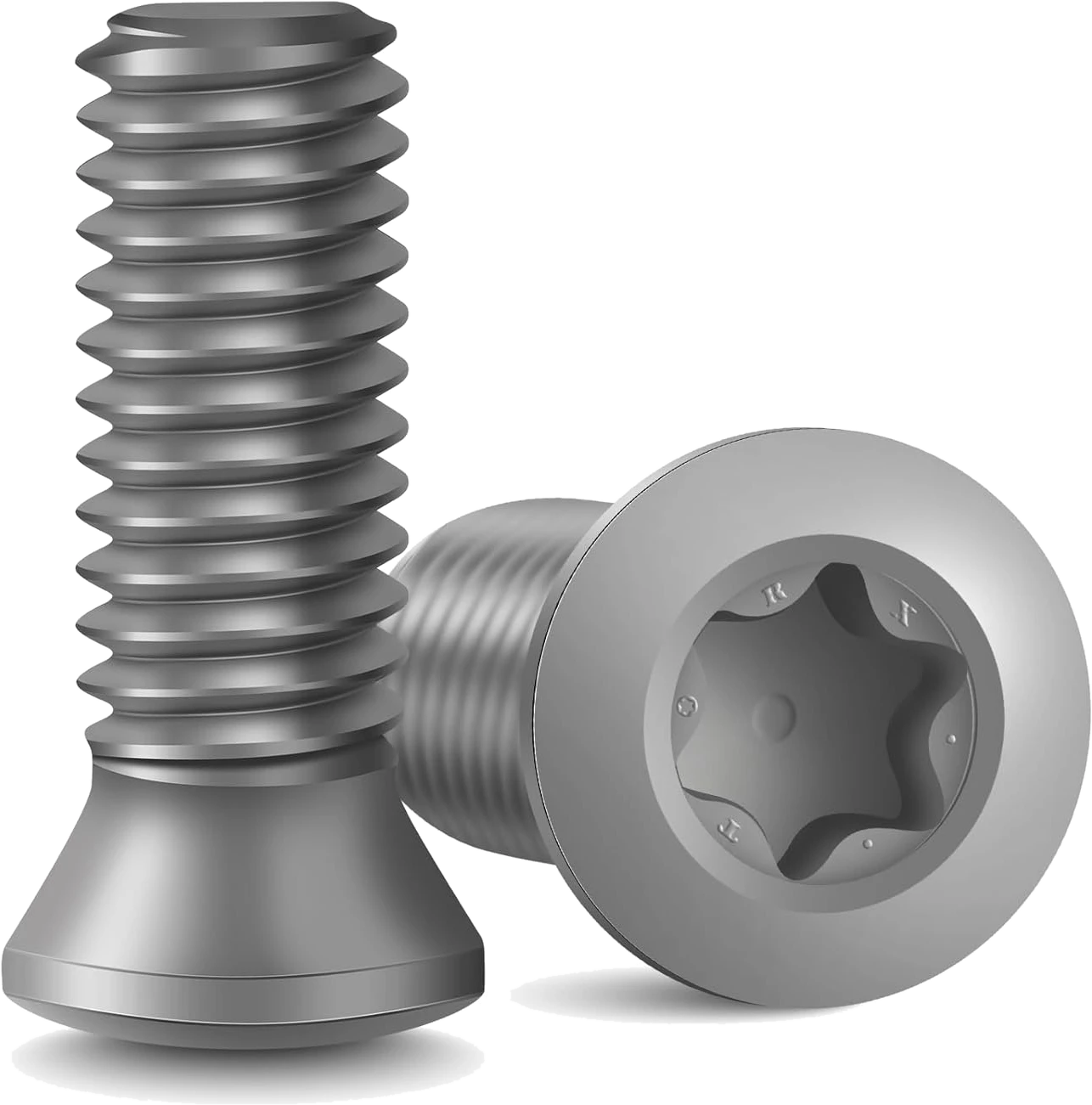

Countersunk Insert Screws
185 models55°/60° countersunk heads for flush mounting, TORX® / TORX PLUS® / hex socket drives, full M1.6–M8 range
View specs ↓Inner-Outer Thread Inserts
5 modelsMale + female thread in one integrated part, simplifying tool assembly structures
View specs ↓Ball Plunger Screws
6 modelsSpring-loaded steel ball positioning between tools and tool disks
View specs ↓Double-End Screws (LH/RH)
7 modelsLeft-hand on one end, right-hand on the other, bidirectional locking for precision opposed assembly
View specs ↓Cylindrical Head Screws Type A
4 modelsExtended cylindrical head, TORX PLUS® drive, high torque capacity
View specs ↓Cylindrical Head Screws Type B
6 modelsCompact cylindrical head, M2.2–M4.5 small sizes, TORX PLUS® drive
View specs ↓Featured Insert Screws
TORX PLUS® 15IP Tool Screw | M4×9 (0.7 Pitch)
Featuring a TORX PLUS® 15IP drive and manufactured from Grade 12.9 high-tensile material, this M4×9 screw (0.7 pitch) is designed with a 60° head angle and specialized X ...
Details
Hex Socket Ball Plunger SW5.0 | M10×16 P1.5 Grade 12.9
Engineered from Grade 12.9 high-tensile material, this M10×16 hex socket screw (SW5.0, 1.5 pitch) delivers stable torque and secure, vibration-proof locking. ...
Details
TORX PLUS® Insert Screw
TORX PLUS® Cutting Tool Screws are manufactured from high-performance alloy steel using efficient deep-hole machining and precision thread-rolling processes, achieving ...
Details

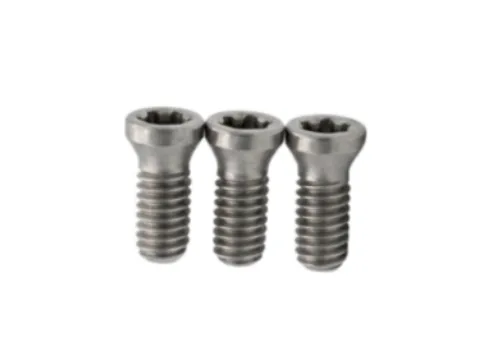

TORX PLUS® 8IP Tool Screw|M2.5×6.5 (0.45 Pitch)
TORX PLUS® 8IP drive, M2.5×6.5 (0.45 pitch), Grade 12.9 high-strength material, 60° head angle. ...
Details
TORX PLUS® 25IP Tool Screw | M6×20 (1.0 Pitch)
TORX PLUS® 25IP drive, M6×20 (1.0 pitch), Grade 12.9 high-strength alloy steel, 60° head angle. Precision threading ensures smooth engagement and secure locking. ...
Details

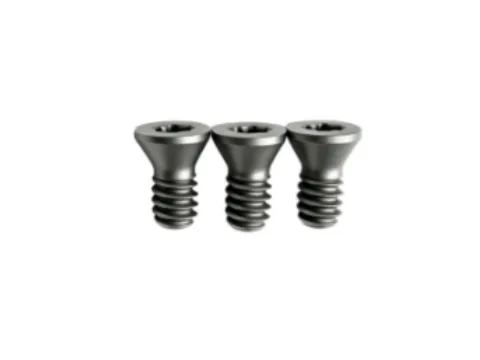

TORX PLUS® 5IP Tool Screw|M1.6×3.2 (0.35 Pitch)
TORX PLUS® 5IP drive, M1.6×3.2 (0.35 pitch), Grade 12.9 high-strength material, 60° head angle, and X surface treatment. ...
Details

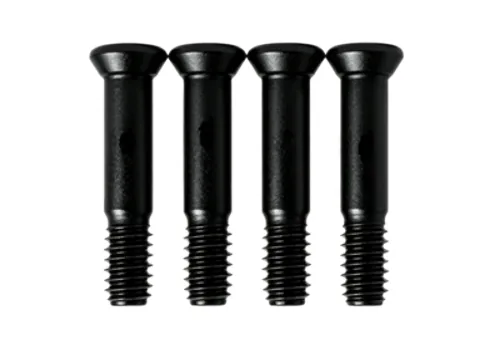

TORX PLUS® 25IP Tool Screw|M6×24.5 (1.0 Pitch)
TORX PLUS® 25IP drive, M6×24.5 (1.0 pitch), Grade 12.9 high-strength material, 60° head angle. Features stable locking, wear resistance, and fatigue resistance. ...
Details

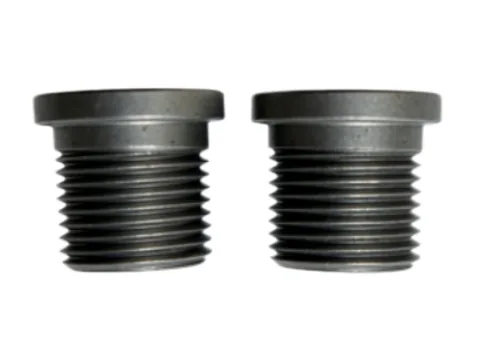

Hex Socket SW5.0 Tool Threaded Adapter | Outer M8×0.75
Hex socket SW5.0 tool threaded adapter screw, featuring Outer M8×0.75 and Inner M5×0.8 threads with a total length of 10mm. ...
Details

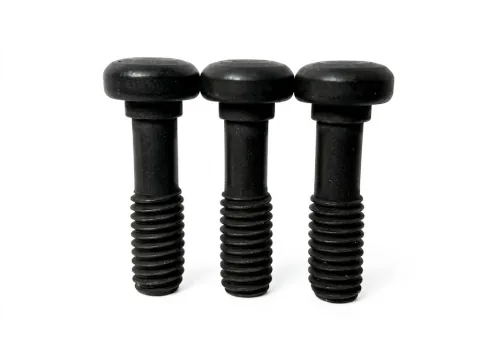

TORX PLUS® 20IP Tool Screw | M6×26 (1.0 Pitch)
Featuring a TORX PLUS® 20IP drive and Grade 12.9 high-tensile material, this M6×26 (1.0 pitch) screw ensures stable torque transmission and reliable locking....
Details

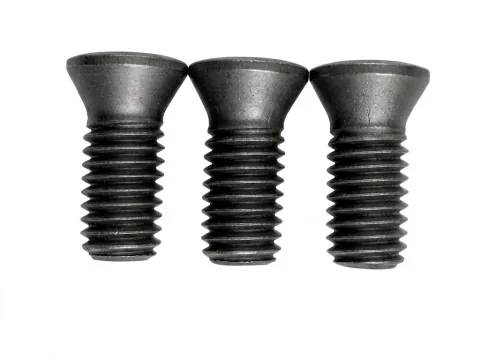

TORX® T20 Tool Screw | M5×12 (0.8 Pitch)
Featuring a TORX® T20 drive and Grade 12.9 high-tensile material, this M5×12 screw (0.8 pitch) is designed with a 60° head angle and specialized X surface treatment....
Details

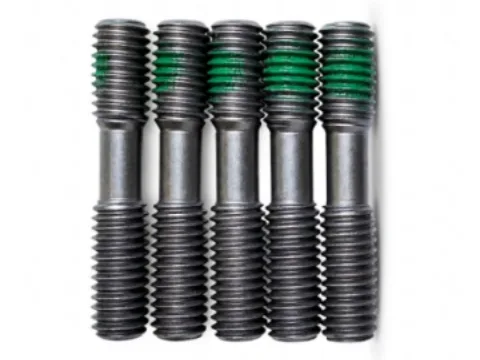

Hex Socket SW3.0 Double-Ended Tool Screw | LH M6×1.0 / RH M6
This hex socket SW3.0 double-ended screw features opposing M6×1.0 threads (Left-Hand and Right-Hand) with a total length of 32mm....
Details

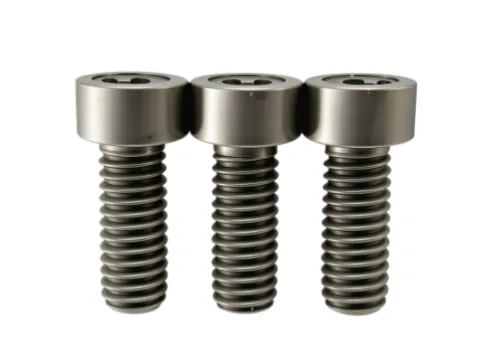

TORX PLUS® 25IP Tool Screw|M4.5×10.75 (0.75 pitch)
Featuring a TORX PLUS® 25IP drive and Grade 12.9 high-tensile steel, this M4.5×10.75 screw (0.75 pitch) offers stable torque delivery and precision locking. ...
DetailsFull Specification Quick Reference (213 Sizes)
All sizes from the current standard catalog are listed below — every part number has its own anchor entry; use Ctrl+F inside a table to search a part number or size.
Countersunk Insert Screws · 185 Standard Sizes
55° / 60° countersunk heads with TORX® / TORX PLUS® / hex socket drives. Each part number is a unique stock code — quote directly by number.
| No. | Thread M | Overall length L | Pitch P | Head angle | Head dia. D | Head height H | Drive A | Drive size | Recess depth I | Thread length T | Part No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M1.6 Series · 2 models | |||||||||||
| 1 | M1.6 | 3.2 | 0.35 | 60° | 2.45 | 0.2 | TORX PLUS® | 5IP | 0.51-0.61 | 1.4 | 100118000006 |
| 2 | M1.6 | 4.2 | 0.35 | 60° | 2.4 | 0.6 | TORX® | T6 | 0.60-0.80 | 2.3 | 100118000238 |
| M1.8 Series · 3 models | |||||||||||
| 3 | M1.8 | 3.65 | 0.35 | 55° | 2.45 | 0.3 | TORX PLUS® | 5IP | 0.51-0.61 | 1.9 | 100118000007 |
| 4 | M1.8 | 4 | 0.35 | 55° | 2.45 | 0.3 | TORX PLUS® | 5IP | 0.51-0.61 | 2.2 | 100118000008 |
| 5 | M1.8 | 4.5 | 0.35 | 60° | 2.3 | 0.7 | TORX PLUS® | 5IP | 0.58-0.69 | 2.7 | 100118000028 |
| M2 Series · 8 models | |||||||||||
| 6 | M2 | 3.7 | 0.4 | 60° | 2.8 | 0.6 | TORX® | T6 | 0.60-0.80 | 1.7 | 100118000145 |
| 7 | M2 | 4.2 | 0.4 | 60° | 2.6 | 0.7 | TORX PLUS® | 6IP | 0.68-0.81 | 1.8 | 100118000037 |
| 8 | M2 | 4.2 | 0.4 | 58° | 2.6 | 0.7 | TORX PLUS® | 6IP | 0.68-0.81 | 2.2 | 100118000047 |
| 9 | M2 | 4.2 | 0.4 | 60° | 2.7 | 0.6 | TORX® | T6 | 0.60-0.80 | 2.2 | 100118000237 |
| 10 | M2 | 4.9 | 0.4 | 60° | 2.6 | 0.7 | TORX PLUS® | 6IP | 0.68-0.81 | 2.5 | 100118000023 |
| 11 | M2 | 5 | 0.4 | 60° | 2.8 | 0.6 | TORX® | T6 | 0.60-0.80 | 3 | 100118000110 |
| 12 | M2 | 5 | 0.4 | 60° | 3 | 0.6 | TORX PLUS® | 6IP | 0.68-0.81 | 3 | 100118000227 |
| 13 | M2 | 10 | 0.4 | 60° | 2.7 | 0.9 | TORX PLUS® | 6IP | 0.68-0.81 | 4.2 | 100118000020 |
| M2.2 Series · 3 models | |||||||||||
| 14 | M2.2 | 4.75 | 0.45 | 55° | 3 | 0.6 | TORX® | T7 | 0.80-0.90 | 2.7 | 100118000048 |
| 15 | M2.2 | 5.2 | 0.45 | 60° | 3.14 | 0.75 | TORX PLUS® | 7IP | 0.91-1.05 | 2.8 | 100118000024 |
| 16 | M2.2 | 6.4 | 0.45 | 60° | 3.1 | 1 | TORX PLUS® | 7IP | 0.91-1.05 | 3.8 | 100118000149 |
| M2.5 Series · 18 models | |||||||||||
| 17 | M2.5 | 3 | 0.35 | 60° | 3.5 | 0.65 | TORX PLUS® | 8IP | 0.81-0.98 | 1 | 100118000126 |
| 18 | M2.5 | 3.5 | 0.35 | 60° | 3.5 | 0.55 | TORX® | T8 | 0.80-0.90 | 2.3 | 100118000239 |
| 19 | M2.5 | 4 | 0.35 | 60° | 3.5 | 0.65 | TORX PLUS® | 8IP | 0.81-0.98 | 2 | 100118000132 |
| 20 | M2.5 | 4.25 | 0.35 | 60° | 3.5 | 0.55 | TORX® | T8 | 0.80-0.90 | 2.8 | 100118000240 |
| 21 | M2.5 | 5 | 0.35 | 60° | 3.5 | 0.65 | TORX PLUS® | 8IP | 0.81-0.98 | 3 | 100118000121 |
| 22 | M2.5 | 5 | 0.45 | 60° | 3.5 | 0.75 | TORX® | T8 | 0.80-1.00 | 2.7 | 100118000174 |
| 23 | M2.5 | 5.2 | 0.35 | 60° | 3.5 | 0.85 | TORX PLUS® | 8IP | 0.90-1.10 | 2.9 | 100118000109 |
| 24 | M2.5 | 5.25 | 0.35 | 60° | 3.5 | 0.55 | TORX® | T8 | 0.80-0.90 | 3.8 | 100118000241 |
| 25 | M2.5 | 6 | 0.45 | 60° | 3.5 | 0.75 | TORX® | T8 | 0.80-1.00 | 3.4 | 100118000014 |
| 26 | M2.5 | 6 | 0.45 | 60° | 3.5 | 0.85 | TORX PLUS® | 8IP | 0.90-1.10 | 3.7 | 100118000085 |
| 27 | M2.5 | 6.4 | 0.45 | 50° | 3.5 | 0.6 | TORX PLUS® | 8IP | 0.81-0.98 | 3.7 | 100118000052 |
| 28 | M2.5 | 6.5 | 0.45 | 60° | 3.45 | 0.7 | TORX PLUS® | 7IP | 0.91-1.05 | 3.7 | 100118000001 |
| 29 | M2.5 | 6.5 | 0.45 | 60° | 3.46 | 0.85 | TORX PLUS® | 8IP | 0.93-1.10 | 3.9 | 100118000021 |
| 30 | M2.5 | 6.5 | 0.45 | 60° | 3.45 | 0.9 | TORX® | T7 | 0.90-1.10 | 4 | 100118000111 |
| 31 | M2.5 | 7.2 | 0.45 | 60° | 3.45 | 1.1 | TORX PLUS® | 8IP | 1.05-1.22 | 4 | 100118000029 |
| 32 | M2.5 | 8 | 0.45 | 60° | 3.45 | 0.9 | TORX® | T7 | 0.90-1.10 | 5.1 | 100118000213 |
| 33 | M2.5 | 9 | 0.45 | 60° | 3.46 | 0.85 | TORX PLUS® | 8IP | 0.93-1.10 | 6.4 | 100118000060 |
| 34 | M2.5 | 10.9 | 0.45 | 60° | 3.35 | 0.8 | TORX PLUS® | 7IP | 0.90-1.10 | 3.4 | 100118000067 |
| M3 Series · 21 models | |||||||||||
| 35 | M3 | 6.5 | 0.5 | Ball | 3.9 | X | TORX® | T8 | 1.05-1.25 | 4.2 | 100118000075 |
| 36 | M3 | 6.5 | 0.5 | 60° | 3.85 | 0.55 | TORX® | T8 | 1.05-1.25 | 4.4 | 100118000114 |
| 37 | M3 | 6.5 | 0.5 | 60° | 3.95 | 0.8 | TORX PLUS® | 8IP | 0.90-1.10 | 4 | 100118000128 |
| 38 | M3 | 7 | 0.5 | 60° | 3.85 | 0.55 | TORX PLUS® | 8IP | 1.05-1.25 | 4.8 | 100118000215 |
| 39 | M3 | 7.2 | 0.5 | 60° | 4.2 | 1 | TORX PLUS® | 9IP | 1.14-1.32 | 4.4 | 100118000122 |
| 40 | M3 | 7.2 | 0.5 | 60° | 4.2 | 1 | TORX® | T9 | 1.00-1.20 | 3.8 | 100118000146 |
| 41 | M3 | 7.5 | 0.5 | 55° | 4.15 | 0.9 | TORX® | T9 | 1.16-1.26 | 4.5 | 100118000018 |
| 42 | M3 | 7.5 | 0.5 | 60° | 4.3 | 0.6 | TORX PLUS® | 9IP | 0.89-1.07 | 4.6 | 100118000182 |
| 43 | M3 | 7.6 | 0.5 | 60° | 4.3 | 0.7 | TORX® | T10 | 1.10-1.25 | 5 | 100118000088 |
| 44 | M3 | 8.1 | 0.5 | Ball | 4.8 | X | TORX PLUS® | 8IP | 1.15-1.25 | 5.5 | 100118000087 |
| 45 | M3 | 8.2 | 0.5 | 60° | 4.4 | 0.7 | TORX PLUS® | 9IP | 1.02-1.19 | 4.5 | 100118000030 |
| 46 | M3 | 8.2 | 0.5 | 60° | 4.3 | 0.8 | TORX PLUS® | 10IP | 1.10-1.30 | 5.7 | 100118000150 |
| 47 | M3 | 8.3 | 0.5 | 60° | 4.3 | 0.6 | TORX PLUS® | 9IP | 0.89-1.07 | 5.4 | 100118000054 |
| 48 | M3 | 8.5 | 0.5 | 60° | 4.2 | 1 | TORX® | T9 | 1.00-1.20 | 5.7 | 100118000162 |
| 49 | M3 | 8.5 | 0.5 | 60° | 4.2 | 1 | TORX PLUS® | 9IP | 1.14-1.32 | 5.2 | 100118000236 |
| 50 | M3 | 9.9 | 0.35 | 25° | 5.3 | 0.9 | TORX® | T10 | 1.40-1.50 | 6.9 | 100118000190 |
| 51 | M3 | 11.3 | 0.35 | 25° | 5.3 | 1.09 | TORX PLUS® | 15IP | 1.14-1.37 | 7 | 100118000003 |
| 52 | M3 | 12 | 0.5 | 48° | 4.2 | 0.9 | TORX® | T10 | 1.00-1.20 | 9 | 100118000172 |
| 53 | M3 | 12.8 | 0.5 | 60° | 4.3 | 0.6 | TORX PLUS® | 8IP | 1.00-1.20 | 3 | 100118000069 |
| 54 | M3 | 14.7 | 0.5 | 60° | 4.3 | 0.6 | TORX PLUS® | 8IP | 1.00-1.20 | 3.4 | 100118000068 |
| 55 | M3 | 17 | 0.5 | 60° | 4.2 | 1 | TORX PLUS® | 9IP | 1.14-1.32 | 6.2 | 100118000017 |
| M3.5 Series · 19 models | |||||||||||
| 56 | M3.5 | 7.6 | 0.6 | 60° | 4.85 | 0.9 | TORX PLUS® | 10IP | 1.10-1.30 | 4.4 | 100118000147 |
| 57 | M3.5 | 8 | 0.6 | 60° | 5.3 | 1.4 | TORX PLUS® | 15IP | 1.47-1.71 | 3.6 | 100118000002 |
| 58 | M3.5 | 8 | 0.6 | 60° | 5.3 | 1.4 | TORX® | T15 | 1.27-1.53 | 4.3 | 100118000118 |
| 59 | M3.5 | 8.5 | 0.6 | 60° | 5.1 | 0.76 | TORX PLUS® | 10IP | 1.10-1.30 | 5 | 100118000022 |
| 60 | M3.5 | 8.6 | 0.6 | 60° | 4.8 | 0.75 | TORX PLUS® | 10IP | 1.12-1.22 | 6 | 100118000143 |
| 61 | M3.5 | 9 | 0.6 | 60° | 5.3 | 1.2 | TORX® | T15 | 1.47-1.71 | 4.6 | 100118000005 |
| 62 | M3.5 | 9 | 0.6 | 60° | 5.5 | 0.6 | TORX® | T15 | 1.40-1.50 | 5.8 | 100118000092 |
| 63 | M3.5 | 9 | 0.6 | 60° | 5.2 | 1.1 | TORX PLUS® | 15IP | 1.40-1.50 | 5.7 | 100118000192 |
| 64 | M3.5 | 9.4 | 0.6 | 60° | 4.75 | 1 | TORX PLUS® | 10IP | 1.10-1.30 | 5.4 | 100118000144 |
| 65 | M3.5 | 9.5 | 0.6 | 55° | 5.5 | 0.6 | TORX® | T15 | 1.40-1.50 | 6 | 100118000107 |
| 66 | M3.5 | 10 | 0.6 | 60° | 5.3 | 1.4 | TORX PLUS® | 15IP | 1.47-1.71 | 5.8 | 100118000062 |
| 67 | M3.5 | 10 | 0.6 | 60° | 5.3 | 1.4 | TORX® | T15 | 1.27-1.53 | 6.2 | 100118000154 |
| 68 | M3.5 | 10 | 0.6 | 60° | 4.9 | 1.75 | TORX PLUS® | 15IP | 1.47-1.71 | 6.1 | 100118000096 |
| 69 | M3.5 | 10 | 0.6 | 60° | 5.1 | 0.76 | TORX PLUS® | 10IP | 1.10-1.30 | 7 | 100118000104 |
| 70 | M3.5 | 10 | 0.6 | 50° | 5 | 0.9 | TORX® | T15 | 1.60-1.80 | 6.6 | 100118000188 |
| 71 | M3.5 | 12 | 0.6 | 60° | 5.3 | 1.4 | TORX PLUS® | 15IP | 1.41-1.71 | 7.6 | 100118000045 |
| 72 | M3.5 | 12 | 0.6 | 60° | 5.3 | 1.4 | TORX® | T15 | 1.27-1.53 | 8.3 | 100118000119 |
| 73 | M3.5 | 12 | 0.6 | 60° | 5.4 | 1 | TORX PLUS® | 15IP | 1.40-1.50 | 8.7 | 100118000171 |
| 74 | M3.5 | 14 | 0.6 | 60° | 5.2 | 1 | TORX® | T15 | 1.40-1.50 | 10.5 | 100118000105 |
| M4 Series · 66 models | |||||||||||
| 75 | M4 | 3.2 | 0.5 | 90° | 6 | 0.35 | TORX PLUS® | 8IP | 0.81-0.98 | 1.3 | 100118000165 |
| 76 | M4 | 3.2 | 0.5 | 90° | 6 | 0.45 | TORX PLUS® | 15IP | 1.00-1.20 | 1 | 100118000205 |
| 77 | M4 | 4.2 | 0.5 | 90° | 6 | 0.35 | TORX PLUS® | 8IP | 0.81-0.98 | 2.3 | 100118000166 |
| 78 | M4 | 4.2 | 0.5 | 90° | 6 | 0.45 | TORX PLUS® | 15IP | 1.00-1.20 | 2 | 100118000204 |
| 79 | M4 | 5.1 | 0.5 | 90° | 6 | 0.35 | TORX PLUS® | 8IP | 0.81-0.98 | 3.2 | 100118000167 |
| 80 | M4 | 5.1 | 0.5 | 90° | 6 | 0.45 | TORX PLUS® | 15IP | 1.00-1.20 | 2.9 | 100118000203 |
| 81 | M4 | 5.7 | 0.5 | 60° | 5.5 | 0.8 | TORX PLUS® | 15IP | 1.40-1.50 | 2.9 | 100118000218 |
| 82 | M4 | 6.1 | 0.5 | 90° | 6 | 0.35 | TORX PLUS® | 8IP | 0.81-0.98 | 4.2 | 100118000170 |
| 83 | M4 | 6.1 | 0.5 | 90° | 6 | 0.45 | TORX PLUS® | 15IP | 1.00-1.20 | 3.9 | 100118000221 |
| 84 | M4 | 6.7 | 0.5 | 60° | 5.5 | 0.8 | TORX PLUS® | 15IP | 1.40-1.50 | 3.9 | 100118000219 |
| 85 | M4 | 7 | 0.5 | 60° | 5.5 | 0.55 | TORX® | T15 | 1.30-1.40 | 4.5 | 100118000102 |
| 86 | M4 | 7.1 | 0.5 | 90° | 6 | 0.35 | TORX PLUS® | 8IP | 0.81-0.98 | 5.2 | 100118000173 |
| 87 | M4 | 7.1 | 0.5 | 90° | 6 | 0.45 | TORX PLUS® | 15IP | 1.00-1.20 | 4.9 | 100118000222 |
| 88 | M4 | 8.3 | 0.5 | 90° | 6 | 0.45 | TORX® | T15 | 1.00-1.15 | 6.2 | 100118000124 |
| 89 | M4 | 8.4 | 0.7 | 60° | 5.7 | 1.2 | TORX® | T15 | 1.40-1.50 | 4.7 | 100118000185 |
| 90 | M4 | 8.5 | 0.7 | 60° | 5.5 | 0.65 | TORX PLUS® | 15IP | 1.14-1.37 | 5.6 | 100118000108 |
| 91 | M4 | 8.5 | 0.7 | 60° | 5.5 | 0.6 | TORX PLUS® | 10IP | 1.10-1.30 | 5.7 | 100118000136 |
| 92 | M4 | 8.6 | 0.5 | 60° | 5.5 | 0.8 | TORX PLUS® | 15IP | 1.40-1.50 | 5.8 | 100118000220 |
| 93 | M4 | 8.9 | 0.7 | 60° | 5.7 | 1.2 | TORX® | T15 | 1.40-1.50 | 5.2 | 100118000191 |
| 94 | M4 | 9 | 0.7 | 60° | 5.5 | 1.2 | TORX PLUS® | 15IP | 1.47-1.71 | 4.7 | 100118000040 |
| 95 | M4 | 9 | 0.7 | 60° | 5.5 | 1.2 | TORX® | T15 | 1.40-1.50 | 4.7 | 100118000042 |
| 96 | M4 | 9 | 0.7 | 60° | 5.5 | 0.6 | TORX PLUS® | 15IP | 0.97-1.21 | 5.6 | 100118000056 |
| 97 | M4 | 9 | 0.7 | 60° | 5.74 | 0.6 | TORX PLUS® | 15IP | 1.40-1.60 | 5.7 | 100118000066 |
| 98 | M4 | 9 | 0.7 | 60° | 5.7 | 0.6 | TORX® | T15 | 1.55-1.65 | 5.5 | 100118000211 |
| 99 | M4 | 9 | 0.7 | 43° | 5.2 | 0.6 | TORX® | T15 | 1.20-1.50 | 6 | 100118000100 |
| 100 | M4 | 9 | 0.5 | 90° | 6 | 0.45 | TORX PLUS® | 15IP | 1.00-1.15 | 6.8 | 100118000138 |
| 101 | M4 | 10 | 0.7 | 60° | 5.5 | 1.2 | TORX PLUS® | 15IP | 1.47-1.71 | 5.7 | 100118000011 |
| 102 | M4 | 10 | 0.7 | 55° | 5.25 | 1.4 | TORX® | T15 | 1.40-1.50 | 6.1 | 100118000019 |
| 103 | M4 | 10 | 0.7 | Ball | 6.65 | X | TORX PLUS® | 15IP | 1.47-1.71 | 6.2 | 100118000039 |
| 104 | M4 | 10 | 0.7 | 60° | 5.7 | 0.6 | TORX® | T15 | 1.40-1.50 | 6.5 | 100118000078 |
| 105 | M4 | 10 | 0.7 | 60° | 5.3 | 0.8 | TORX® | T15 | 1.40-1.50 | 7 | 100118000089 |
| 106 | M4 | 10 | 0.7 | Ball | 5.7 | X | TORX PLUS® | 15IP | 1.14-1.37 | 6.2 | 100118000095 |
| 107 | M4 | 10 | 0.7 | Ball | 5.7 | X | TORX® | T15 | 1.14-1.37 | 6.2 | 100118000120 |
| 108 | M4 | 10 | 0.7 | Ball | 5.9 | X | TORX® | T15 | 1.60-1.80 | 6 | 100118000169 |
| 109 | M4 | 10 | 0.7 | 60° | 5.7 | 1.2 | TORX® | T15 | 1.40-1.50 | 6.3 | 100118000183 |
| 110 | M4 | 10.5 | 0.7 | 60° | 5.9 | 1.3 | TORX PLUS® | 15IP | 1.47-1.71 | 6.1 | 100118000164 |
| 111 | M4 | 11 | 0.7 | 60° | 5.65 | 0.8 | TORX PLUS® | 15IP | 1.31-1.54 | 5.3 | 100118000031 |
| 112 | M4 | 11 | 0.7 | Ball | 5.9 | X | TORX® | T15 | 1.60-1.80 | 7 | 100118000038 |
| 113 | M4 | 11 | 0.7 | 60° | 5.7 | 0.8 | TORX® | T15 | 1.50-1.60 | 7.3 | 100118000057 |
| 114 | M4 | 11 | 0.7 | 60° | 5.5 | 0.6 | TORX PLUS® | 15IP | 0.97-1.21 | 7.6 | 100118000061 |
| 115 | M4 | 11 | 0.7 | 60° | 5.7 | 0.6 | TORX® | T15 | 1.40-1.50 | 7.5 | 100118000080 |
| 116 | M4 | 11 | 0.7 | 60° | 5.5 | 1.2 | TORX PLUS® | 15IP | 1.47-1.71 | 6.2 | 100118000184 |
| 117 | M4 | 11 | 0.7 | 60° | 5.55 | 1.3 | TORX PLUS® | 15IP | 1.47-1.71 | 7.5 | 100118000212 |
| 118 | M4 | 11 | 0.7 | 60°(84°) | 5.7 | 1.2 | TORX PLUS® | 15IP | 1.60-1.74 | 6.4 | 100118000156 |
| 119 | M4 | 11.2 | 0.7 | 60° | 5.8 | 0.7 | TORX PLUS® | 15IP | 1.31-1.54 | 7.5 | 100118000053 |
| 120 | M4 | 11.5 | 0.7 | 60° | 5.6 | 1 | TORX® | T15 | 1.40-1.50 | 7.4 | 100118000200 |
| 121 | M4 | 11.8 | 0.7 | 60° | 5.75 | 0.5 | TORX PLUS® | 15IP | 1.14-1.37 | 8.4 | 100118000065 |
| 122 | M4 | 11.8 | 0.7 | 43° | 5.2 | 0.6 | TORX PLUS® | 15IP | 1.20-1.50 | 8.7 | 100118000151 |
| 123 | M4 | 12 | 0.7 | 60° | 5.7 | 0.6 | TORX® | T15 | 1.40-1.50 | 8.5 | 100118000063 |
| 124 | M4 | 12 | 0.7 | 60°(84°) | 5.7 | 1.2 | TORX® | T15 | 1.60-1.74 | 7 | 100118000115 |
| 125 | M4 | 12 | 0.7 | 60° | 5.5 | 1.2 | TORX PLUS® | 15IP | 1.47-1.71 | 8.5 | 100118000235 |
| 126 | M4 | 12.5 | 0.7 | 60° | 5.5 | 1.05 | TORX® | T15 | 1.40-1.50 | 9 | 100118000046 |
| 127 | M4 | 12.5 | 0.7 | 60° | 5.5 | 1.1 | TORX PLUS® | 15IP | 1.40-1.50 | 9.2 | 100118000228 |
| 128 | M4 | 12.8 | 0.7 | 60° | 5.5 | 0.45 | TORX® | T15 | 1.40-1.50 | 10 | 100118000201 |
| 129 | M4 | 13 | 0.7 | 60° | 5.45 | 1.3 | TORX PLUS® | 15IP | 1.47-1.71 | 8.2 | 100118000026 |
| 130 | M4 | 13 | 0.7 | 60° | 5.7 | 0.6 | TORX® | T15 | 1.40-1.50 | 9.5 | 100118000081 |
| 131 | M4 | 13 | 0.7 | 60° | 5.7 | 0.6 | TORX® | T15 | 1.55-1.65 | 8.1 | 100118000224 |
| 132 | M4 | 13.5 | 0.7 | 40° | 5.7 | 0.7 | TORX® | T15 | 1.40-1.50 | 3.5 | 100118000125 |
| 133 | M4 | 14 | 0.7 | 60° | 5.5 | 1.2 | TORX® | T15 | 1.40-1.50 | 9.7 | 100118000044 |
| 134 | M4 | 14 | 0.7 | 60° | 5.7 | 0.6 | TORX® | T15 | 1.40-1.50 | 10.5 | 100118000050 |
| 135 | M4 | 14 | 0.7 | 73° | 5.8 | 0.75 | TORX® | T15 | 1.40-1.50 | 11.3 | 100118000113 |
| 136 | M4 | 14 | 0.5 | 60° | 6.8 | 1.7 | TORX PLUS® | 15IP | 1.47-1.71 | 8.7 | 100118000155 |
| 137 | M4 | 16 | 0.7 | 60° | 5.7 | 0.6 | TORX® | T15 | 1.40-1.50 | 12.5 | 100118000079 |
| 138 | M4 | 16 | 0.7 | 60° | 5.7 | 1.2 | TORX® | T15 | 1.60-1.80 | 12.3 | 100118000175 |
| 139 | M4 | 16.7 | 0.7 | 60° | 5.8 | 0.8 | TORX PLUS® | 15IP | 1.30-1.50 | 3.9 | 100118000070 |
| 140 | M4 | 19 | 0.7 | 60° | 5.45 | 1.2 | TORX PLUS® | 15IP | 1.47-1.71 | 9.4 | 100118000163 |
| M4.5 Series · 6 models | |||||||||||
| 141 | M4.5 | 9.3 | 0.75 | 57° | 6 | 0.5 | TORX PLUS® | 10IP | 1.10-1.30 | 5.8 | 100118000034 |
| 142 | M4.5 | 11.5 | 0.75 | 55° | 6.8 | 0.4 | TORX PLUS® | 20IP | 1.65-1.81 | 8 | 100118000135 |
| 143 | M4.5 | 12 | 0.75 | 60° | 5.75 | 1 | TORX PLUS® | 15IP | 1.47-1.71 | 8.8 | 100118000139 |
| 144 | M4.5 | 12 | 0.75 | 56° | 5.8 | 1.2 | TORX® | T15 | 1.60-1.80 | 8.6 | 100118000187 |
| 145 | M4.5 | 12 | 0.75 | 60° | 6.4 | 1.2 | TORX® | T20 | 1.90-2.20 | 8.2 | 100118000214 |
| 146 | M4.5 | 123 | 0.75 | 60° | 5.75 | 1.3 | TORX PLUS® | 15IP | 1.47-1.71 | 8.8 | 100118000148 |
| M5 Series · 29 models | |||||||||||
| 147 | M5 | 8 | 0.8 | 60° | 6.6 | 1.4 | TORX® | T20 | 1.90-2.20 | 4.2 | 100118000193 |
| 148 | M5 | 8.5 | 0.8 | 50° | 6.8 | 0.8 | TORX PLUS® | 20IP | 1.55-1.65 | 4.6 | 100118000091 |
| 149 | M5 | 9.5 | 0.8 | 60° | 7.1 | 1 | TORX PLUS® | 20IP | 1.74-2.01 | 5.6 | 100118000226 |
| 150 | M5 | 10 | 0.8 | 60° | 7.1 | 0.8 | TORX® | T20 | 1.50-1.80 | 5.7 | 100118000051 |
| 151 | M5 | 10.8 | 0.8 | 60° | 7.2 | 0.9 | TORX® | T20 | 1.90-2.20 | 6.8 | 100118000099 |
| 152 | M5 | 10.8 | 0.8 | 43° | 6.4 | 0.8 | TORX® | T20 | 1.80-2.00 | 6.8 | 100118000186 |
| 153 | M5 | 11.45 | 0.8 | 60° | 7 | 1.4 | TORX PLUS® | 20IP | 1.74-2.01 | 6.8 | 100118000027 |
| 154 | M5 | 11.5 | 0.8 | 60° | 7 | 1.25 | TORX PLUS® | 20IP | 1.74-2.01 | 7.3 | 100118000225 |
| 155 | M5 | 12 | 0.8 | 60° | 7.1 | 0.8 | TORX® | T20 | 1.50-1.80 | 7.5 | 100118000012 |
| 156 | M5 | 12 | 0.8 | 60° | 6.75 | 0.9 | TORX PLUS® | 20IP | 1.55-1.65 | 8 | 100118000055 |
| 157 | M5 | 12 | 0.8 | 60° | 7.2 | 0.9 | TORX® | T20 | 1.90-2.20 | 7.7 | 100118000064 |
| 158 | M5 | 12 | 0.8 | 60° | 7.1 | 0.7 | TORX PLUS® | 20IP | 1.65-1.81 | 6.2 | 100118000159 |
| 159 | M5 | 12 | 0.8 | 83° | 7 | 0.9 | TORX® | T20 | 1.42-1.80 | 7.7 | 100118000216 |
| 160 | M5 | 125 | 0.8 | 40° | 6.35 | 0.6 | TORX PLUS® | 20IP | 1.65-1.81 | 8 | 100118000129 |
| 161 | M5 | 12.6 | 0.8 | 60° | 7 | 1 | TORX PLUS® | 20IP | 1.55-1.65 | 8.5 | 100118000161 |
| 162 | M5 | 12.7 | 0.8 | 43° | 6.4 | 0.85 | TORX® | T20 | 1.50-1.80 | 7.4 | 100118000160 |
| 163 | M5 | 13 | 0.8 | 60° | 7.1 | 0.8 | TORX® | T20 | 1.50-1.80 | 8.7 | 100118000025 |
| 164 | M5 | 13 | 0.8 | 60° | 7 | 0.7 | TORX PLUS® | 20IP | 1.65-1.81 | 9.5 | 100118000116 |
| 165 | M5 | 14 | 0.8 | 60° | 7.1 | 0.8 | TORX® | T20 | 1.50-1.80 | 9.5 | 100118000041 |
| 166 | M5 | 14 | 0.8 | 60° | 7.2 | 0.9 | TORX® | T20 | 1.90-2.20 | 10.2 | 100118000223 |
| 167 | M5 | 14 | 0.8 | 60° | 7.2 | 1.7 | TORX® | T20 | 1.90-2.20 | 9.4 | 100118000189 |
| 168 | M5 | 14 | 0.8 | 83° | 7 | 0.9 | TORX® | T20 | 1.42-1.80 | 9.7 | 100118000217 |
| 169 | M5 | 14 | 0.8 | 83° | 7 | 0.9 | TORX PLUS® | 20IP | 1.34-1.62 | 8.8 | 100118000015 |
| 170 | M5 | 16 | 0.8 | 60° | 7.1 | 0.8 | TORX® | T20 | 1.50-1.80 | 10.5 | 100118000013 |
| 171 | M5 | 16.2 | 0.8 | 40° | 6.5 | 1.2 | TORX® | T20 | 1.50-1.90 | 4.3 | 100118000131 |
| 172 | M5 | 17 | 0.8 | 60° | 7.2 | 1.3 | TORX® | T20 | 1.80-2.00 | 12.2 | 100118000058 |
| 173 | M5 | 18.6 | 0.8 | 60° | 7.5 | 1.05 | TORX PLUS® | 20IP | 1.65-1.81 | 4.4 | 100118000071 |
| 174 | M5 | 20.6 | 0.8 | 60° | 7.5 | 1.05 | TORX PLUS® | 20IP | 1.65-1.81 | 5.2 | 100118000072 |
| 175 | M5 | 22.5 | 0.8 | 60° | 7.5 | 1.05 | TORX PLUS® | 20IP | 1.65-1.81 | 5.4 | 100118000076 |
| M6 Series · 8 models | |||||||||||
| 176 | M6 | 12 | 1 | 60° | 8.5 | 1.25 | TORX® | T25 | 2.10-2.30 | 7 | 100118000194 |
| 177 | M6 | 13 | 1 | 60° | 8.5 | 1.35 | TORX PLUS® | 25IP | 2.10-2.30 | 8 | 100118000152 |
| 178 | M6 | 16 | 1 | Ball | 9.45 | X | TORX PLUS® | 25IP | 1.90-2.10 | 10 | 100118000103 |
| 179 | M6 | 16 | 1 | 60° | 8.5 | 1.25 | TORX® | T25 | 2.10-2.30 | 11 | 100118000158 |
| 180 | M6 | 18 | 1 | 60° | 8.5 | 1.35 | TORX® | T25 | 2.10-2.30 | 13 | 100118000059 |
| 181 | M6 | 20 | 1 | 40° | 8.5 | X | TORX® | T30 | 2.30-2.70 | 7.8 | 100118000016 |
| 182 | M6 | 24.5 | 1 | 60° | 9.4 | 1.1 | TORX PLUS® | 25IP | 1.95-2.15 | 6.1 | 100118000074 |
| 183 | M6 | 26.6 | 1 | 60° | 9.4 | 1.1 | TORX PLUS® | 25IP | 1.95-2.15 | 6.1 | 100118000073 |
| M8 Series · 2 models | |||||||||||
| 184 | M8 | 25 | 1.25 | 40° | 11 | 1.4 | TORX® | T30 | 2.30-2.70 | 7.2 | 100118000130 |
| 185 | M8 | 26 | 1.25 | 66° | 9.5 | 2.65 | TORX PLUS® | 30IP | 2.47-2.86 | 12.5 | 100118000202 |
Inner-Outer Thread Inserts · 5 Models
Male thread M5–M8 + female thread M3.5–M5 composite structure (August 2024 catalog edition).
| No. | Male thread M2 | Pitch P2 | Female thread M1 | Pitch P1 | Overall length L1 | L2 | L3 | L4 | Head dia. ɸ1 | Plain shank ɸ2 | Hex socket SW | Part No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | M5.0 | 0.5 | M3.5 | 0.6 | 8.65 | 1.2 | 3.3 | 2 | 6.3 | 5 | 3.5 | 100118000009 |
| 2 | M5.5 | 0.5 | M4.0 | 0.7 | 8.5 | 1.2 | 2.4 | 2 | 6.6 | 5.5 | 4 | 100118000086 |
| 3 | M6.0 | 0.75 | M4.0 | 0.5 | 10 | 1.6 | 4.1 | 2.5 | 7.8 | 6 | 4 | 100118000010 |
| 4 | M6.0 | 0.75 | M4.0 | 0.7 | 10 | 1.6 | 4.1 | 2.5 | 7.8 | 6 | 4 | 100118000168 |
| 5 | M8.0 | 0.75 | M5.0 | 0.8 | 10 | 1.7 | 3.2 | 2.5 | 9.8 | 8 | 5 | 100118000090 |
Ball Plunger Screws · 6 Models
Spring-loaded steel ball positioning, M4–M10.
| No. | Thread M | Pitch P | Overall length L1 | Hex depth L2 | Steel ball ɸ2 | Ball flat ɸ1 | Hex socket SW | Part No. |
|---|---|---|---|---|---|---|---|---|
| 1 | M4 | 0.7 | 4 | 2.5 | 2 | 1.8 | 2 | 100118000180 |
| 2 | M4 | 0.7 | 6 | 3 | 2.5 | 2 | 2 | 100118000179 |
| 3 | M5 | 0.8 | 8 | 3.8 | 3 | 2.5 | 2.5 | 100118000178 |
| 4 | M6 | 1 | 10 | 4 | 4 | 3.2 | 3 | 100118000177 |
| 5 | M6 | 1 | 12 | 4 | 4 | 3.2 | 3 | 100118000176 |
| 6 | M10 | 1.5 | 16 | 6 | 7 | 6 | 5 | 100118000036 |
Double-End Screws (LH + RH) · 7 Models
Left-hand on one end, right-hand on the other — bidirectional synchronized locking.
| No. | LH thread M1 | Pitch P1 | Length L2 | RH thread M2 | Pitch P2 | Length L3 | Overall length L1 | Hex depth L4 | Plain shank ɸ | Hex socket / drive | Part No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | M3 | 0.5 | 4.7 | M2.5 | 0.45 | 5.8 | 14.3 | 1.6 | 2 | TORX® T6 | 100118000077 |
| 2 | M3.5 | 0.6 | 7 | M2.5 | 0.45 | 7 | 16 | 3 | 2.5 | 1.5 | 100118000140 |
| 3 | M3.5 | 0.6 | 6.8 | M3 | 0.5 | 7.2 | 16 | 3 | 2.7 | 1.5 | 100118000098 |
| 4 | M4 | 0.7 | 8 | M3 | 0.5 | 9 | 19 | 3 | 3 | 2 | 100118000141 |
| 5 | M5 | 0.8 | 9.5 | M4 | 0.7 | 10.5 | 23 | 4 | 4 | 2.5 | 100118000142 |
| 6 | M6 | 1 | 12.3 | M5 | 0.8 | 12.6 | 28 | 4.5 | 4.8 | 3 | 100118000106 |
| 7 | M6 | 1 | 10.9 | M6 | 1 | 13.9 | 32 | 4.5 | 4.3 | 3 | 100118000123 |
Cylindrical Head Screws Type A · 4 Models
Extended cylindrical head for high torque capacity.
| No. | Thread M | Overall length L1 | Pitch P | Head dia. D | Head height H | ɸ1 | ɸ2 | Drive A | Recess depth I | L2 | L3 | Part No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | M4 | 17.5 | 0.7 | 6.4 | 2.4 | 3 | 3.7 | TORX PLUS® 9IP | 1.14-1.32 | 9.1 | 3.9 | 100118000082 |
| 2 | M5 | 21 | 0.8 | 8 | 3.5 | 3.9 | 4.9 | TORX PLUS® 15IP | 1.47-1.71 | 11 | 5 | 100118000083 |
| 3 | M6 | 26 | 1 | 10 | 4 | 4.7 | 5.9 | TORX PLUS® 20IP | 1.74-2.01 | 14.5 | 6 | 100118000084 |
| 4 | M8 | 29.5 | 1.25 | 12 | 4.5 | 6.5 | 7.9 | TORX PLUS® 25IP | 1.90-2.10 | 15.5 | 6.5 | 100118000127 |
Cylindrical Head Screws Type B · 6 Models
Compact cylindrical head, M2.2–M4.5.
| No. | Thread M | Overall length L1 | Pitch P | Head dia. D | Head height H | Drive A | Recess depth I | Part No. |
|---|---|---|---|---|---|---|---|---|
| 1 | M2.2 | 5.7 | 0.45 | 3.5 | 1.7 | TORX PLUS® 8IP | 0.81-0.98 | 100118000234 |
| 2 | M2.5 | 7 | 0.45 | 4.1 | 1.9 | TORX PLUS® 10IP | 1.10-1.30 | 100118000233 |
| 3 | M3 | 7.9 | 0.5 | 4.9 | 2.5 | TORX PLUS® 15IP | 1.30-1.50 | 100118000232 |
| 4 | M3.5 | 8.75 | 0.6 | 5.5 | 2.7 | TORX PLUS® 15IP | 1.40-1.50 | 100118000231 |
| 5 | M4 | 9.45 | 0.7 | 6 | 3 | TORX PLUS® 20IP | 1.60-1.80 | 100118000230 |
| 6 | M4.5 | 10.75 | 0.75 | 6.8 | 3.4 | TORX PLUS® 25IP | 1.90-2.10 | 100118000229 |
Insert Screw Selection Guide
1. By drive system: TORX® vs TORX PLUS®
TORX® is a 15° drive-angle torx recess; TORX PLUS® uses a 0° drive-angle elliptical lobed profile with a larger bit contact area, transmitting higher torque in the same space with less recess wear and longer bit life. For highly automated lines and frequent tool changes, TORX PLUS® is recommended.
2. By head style
Choose a countersunk head (55°/60° — match the insert seat countersink angle) for flush mounting; cylindrical head Type A/B where the head may protrude and high torque capacity is needed; ball plungers for spring positioning; LH/RH double-end screws for bidirectional opposed locking.
3. By thread size
Follow the insert / tool-disk mounting hole: M2.5–M5 is common for insert clamping, M6–M8 for large tool disks and heavy-duty fixtures, M1.6–M2.2 for micro tools. Match the pitch to the internal thread of the hole (coarse and fine pitches are often available for the same diameter).
4. By material and environment
Standard is grade 12.9 alloy steel (black oxide / nickel plating); choose stainless steel or corrosion-resistant coatings for humid or coolant environments; aluminum / titanium are available for lightweight tools on request. For high-vibration conditions, combine LH/RH bidirectional locking or thread-locking adhesive.
5. Custom structures
Inner-outer thread inserts combine male and female threads in one part to simplify tool structure; extended cylindrical heads, special head shapes and custom recess depths are made to drawing with rapid sample validation.
Typical Applications
CNC Insert Clamping
Turning / milling insert clamping, impact and vibration resistant, fast insert changes
Tool Disk & Holder Assembly
High-precision locking and positioning of tool disks and holders
Modular Tooling Systems
Inner-outer thread inserts simplify compound tool structures and save space
Precision Opposed Locking
LH/RH double-end screws lock in both directions — no lock washers needed
Spring Positioning & Limiting
Ball plungers provide flexible positioning for tools and fixtures
Molds & Fixtures
Grade 12.9 high-strength locking for heavy-duty cutting conditions
Insert Screw FAQ
Q1Is YF ZCJ a licensed TORX® / TORX PLUS® manufacturer?
Yes. YF ZCJ is a licensed TORX® / TORX PLUS® insert screw manufacturer; recess machining accuracy follows the license standards, and material certificates, full-dimensional inspection and torque test reports are available.
Q2What head angles and drive systems do countersunk insert screws come in?
Countersunk insert screws are mainly 55°/60° head angle, with special angles of 25°–90° available on request. Drive systems cover TORX PLUS® (5IP–30IP), TORX® (T6–T30) and hex socket, in thread sizes M1.6–M8 — 185 standard sizes in total (see the quick reference tables above).
Q3What is the difference between TORX PLUS® and TORX®, and which should I choose?
TORX® is a 15° drive-angle torx recess; TORX PLUS® uses a 0° drive-angle elliptical lobed profile with a larger bit contact area — higher torque in the same installation space, less recess wear and longer bit life. Choose TORX PLUS® for highly automated assembly and frequent maintenance.
Q4What materials and strength grades are commonly used?
Standard is grade 12.9 alloy steel (black oxide / nickel plating and other finishes available); stainless steel and corrosion-resistant solutions are offered as needed. Specials can be customized in titanium, aluminum and other lightweight materials.
Q5Can special-shape insert screws be made to drawing?
Yes. Inner-outer thread inserts, LH/RH double-end screws, ball plungers and extended cylindrical heads can all be made to drawing or sample, with rapid engineering sampling and continuous process optimization.
Q6Why is the TORX® drive so common for insert clamping screws?
Insert clamping means tight space, high torque and frequent insert changes. TORX® / TORX PLUS® recesses distribute radial force evenly, avoiding slip damage to the insert; combined with grade 12.9 material, clamping force stays stable over repeated assembly cycles.
Q7What are the MOQ and sampling lead times?
Standard sizes support small-batch orders with fast engineering-sample response. Contact us for a size-specific evaluation of MOQ and delivery.
Q8How do I get the full catalog and a quotation?
Click “Get the Full Catalog” above or contact us directly to receive the PDF catalog (with all 185 countersunk and 28 special-shape part numbers) and a quotation on demand.
Need the Full Catalog or Build-to-Print Insert Screws?
Send us your specifications, part numbers or drawings for selection advice, inspection reports and fast quotes — direct access to our sales team.
